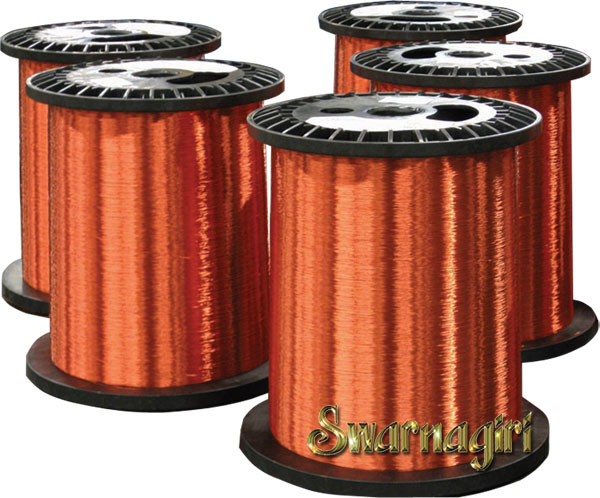

Enamelled Copper Wire

Bare Copper WireEnamelled Copper Wire or Enamelled Aluminum Wire is used in the construction of transformers, inductors, motors, headphones,loudspeakers, hard drive head positionable, potentiometers, and electromagnets, and many more applications. Enameled wire is covered with thin insulation. Enameled copper wire typically uses one to three layers of polymer film insulation, to provide a tough, continuous insulating layer.

Enamelled Copper Wire or Enamelled Aluminum Wire Typical Applications

  • Rotating machines
  • Power and Distribution Transformers
  • Alternators
  • Hermetic motors (for refrigeration and air conditioning equipment)
  • Control and Power supply Transformers
  • Ballasts
  • Auto Electricals
  • Electric hand Tools
  • House hold appliances
  • Fans Switchgear, relay and magnet coils
  • Instruments and audio coils and many others
ENAMEL BASEMODIFIED
POLYSTER PE(MODIFIED)
POLYSTERMIDE (P.I.E.)POLYSTERMIDE POLYAMIDE-IMIDE (PEI+PAI)POLYMIDE-IMIDE (PAI)
THERMAL/INSULATION CLASSI55°  ‘F’ CLASS180°  ‘H’ CLASS200° DUAL COTED220°  ‘C’  CLASS
SPECIFICATION OLD IS:
NEW IS:
IEC:
IS:4800-V2
IS: 13730 – 3
IEC 317 – 3
IS:4800-9
IS: 13730 -8
IEC 317 – 8
IS:4800-13
IS: 13730 -13
IEC 317 – 13
IS:4800-11
IS: 13730 -7
IEC 317 – 7
COLOUR OF ENAMELED WIRESDARK & LIGHT BROWNDARK BROWNMEDIUM – DARK BROWNBROWN
GENERAL APPLICATIONSGeneral Purpose
Roting & Static Electrical Equipments, F.H.P. Motors,
Transformers, etc
F.H.P. Motors
for hand tools Hermatic Applications, Ignition Coils &
All Thermal Class 180 Equipments.
Hermatic Applications
Special Purpose Motors & All Thermal Class 200 Equipments
Special Motors
Hermatic Motors
SPECIAL REMARKSGood Thermal & Die-Electric
Properties
Resistance against Refrigerant
& Transformer Oil, High Burnout Resistance etc.
Air Crack Registance against
refrigerants & Chemicals very high burnout resistance,
excellent Windablity low co-efficient of fraction High
slotfilled factor & improved obrasion resistant.
Air Crack Resistant again
Refrigent & Chemicals very high burnout resistant,
excellent Windability low co-efficient of friction High
slotfill factor & abrasion resistance.
LIMITATIONSOil-filled Transformers,
Rotating Machines used by Railway Hermetic Motors.

TECNICAL SPECIFICATIONS
ABRASION RESISTANCE / MECHANICAL PROPERTIES
Fair / GoodVery Good / GoodExcellent / ExcellentExcellent / Excellent
RESISTANCE
TO VARNISHES AND SOLVENT
GoodVery GoodExcellentExcellent
RESISTANCE
TO FREON-22
Very GoodSuperbExcellent
FELXIBILITY AND ADHERENCEGoodVery GoodSuperbExcellent
CUT-THROUGH / HEAT SHOCK240°C / 200°C300°C / 200°C320°C / 220°C400°C / 240°C
