Packing Details

Tipo DIN 46399 / DIN Type 46399

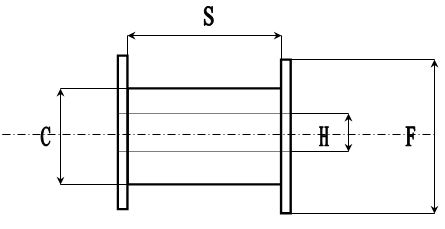

Cylindrical Spools

Cylindrical Spools

Type F C H S wire weight wire volume reel weight
DIN 250 250mm 160mm 22mm 160mm 22kg 3429cm3 1050g
DIN 355 355mm 224mm 36mm 160mm 48kg 7400cm3 1850g
DWF500 500mm 315mm 36mm 180mm 103kg 15900 cm3 7650g

Other Cylindrical Bobbin

Spool’s Code Flange Diameter Barrel Diameter Bore Diameter Overall Length Traverse Length Weight in grams Wire Cap.(kg)
d1 d2 d4 L1 L2
10 inch 250 110 38 150 122 680 22
8 inch 200 91 38 150 122 450 15

Tipo DIN 46383 / DIN Type 46383

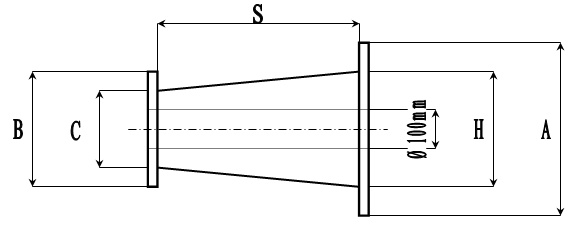

Tapered Spools

Tapered spools

Type A (mm) B (mm) C (mm) H (mm) S (mm) Wire weight Reel weight
200/315 200 190 112 125 265 25kg 1250g
250/400 250 236 140 160 335 45kg 2250g
315/500 315 300 180 200 425 90kg 4350g
400/630 400 375 224 250 530 190kg 7300g
500/800 500 476 280 315 670 400kg 15000g

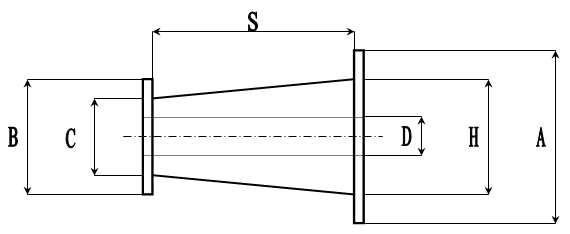

Tapered spools 2

Type A (mm) B (mm) C (mm) H (mm) S (mm) D (mm) wire weight Reel weight
PT 25 230 215 110 130 250 30 25kg 1000g
PT 60 300 270 150 180 350 45 60kg 2400g
PT 90 315 300 180 200 425 100 90kg 3900g
PT 200 400 375 224 250 530 100 190kg 9000g
Spool’s Code Flange Diameter Barrel Diameter Bore Diameter Overall Length Traverse Length Weight in grams Wire Cap. (Kg)
d1 d2 d4 L1 L2
PT-1 95 / 105 53 / 58 20 120 100 110 2
PT-4 123 / 140 73 / 84 27 188 170 280 5

Standard Delivery Spools

Reel Type Approx Wire Wt.(kg) Dimension (mm)
0.06 – 0.11 >0.11 – 0.17 >0.17 – 0.41 >0.41 – 0.71 >0.71 – 2.30 >2.30 –5.00
DIN 250 22
DIN 355 48
DWF500 103
PT 25 25
PT 60 60
PT 90 90
PT 200 190
PT 1 2
PT 4 5
10 inch 22
8 inch 15
200/315 25
250/400 45
315/500 90
400/630 190
500/800 400
Standard Spools
Other Spools on Request
